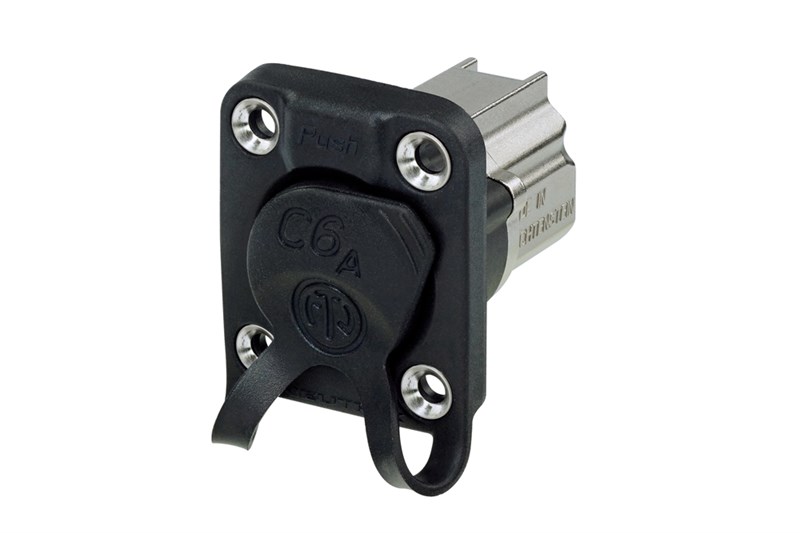

Neutrik etherCON CAT6A panel connector shielded IDC termination IP65 - NE8FDX-Y6-W
NE8FDX-Y6-W
D-shape CAT6A panel connector, shielded, IDC termination with rubber sealing, IP65 when mated, black housing
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
$21.39 / each
Special Price Offers
Buy 100 or more
$18.83/item
Save 12%
This item typically ships in 3-5 days
Back Ordered product
| Contact plating | Au |
| Gasket | Rubber (EPDM) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Rated voltage | ≤ 57 V |
| Transmission performance | CAT6A acc. to TIA/EIA 568C channel specifications CLASS EA acc. to ISO/IEC 11801 channel specifications |
| Power over Ethernet | PoE type 3 class 6 (60W) acc. IEEE 802.3bt |
| Lifetime | > 1000 mating cycles |
| Wiresize | solid: AWG 26/1 - AWG 22/1 stranded: AWG 26/7 - AWG 22/7 |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
