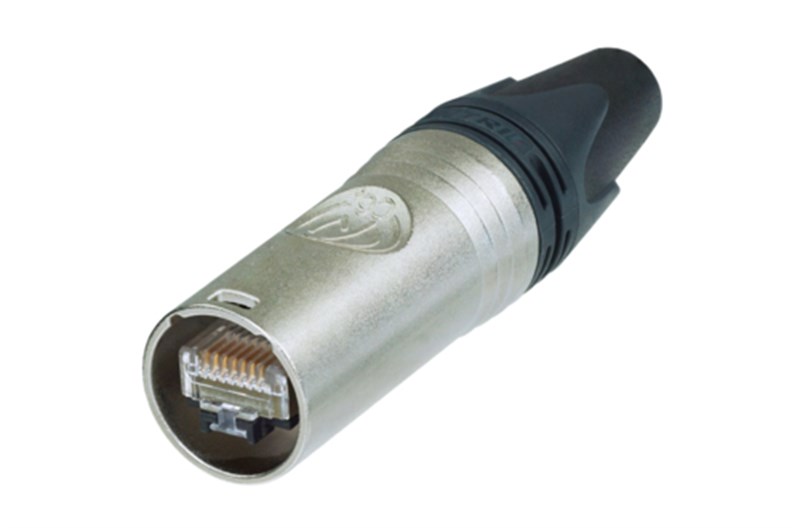

Neutrik etherCON CAT6A Nickel - NE8MX6
NE8MX6
etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating
The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
If the insulation diameter is ≤ 1.1 mm please refer to NE8MX6-T.
$16.23 / each
Special Price Offers
Buy 100 or more
$14.43/item
Save 12%
This item typically ships in 3-5 days
Back Ordered product
| Bushing | PA / PU |
| Contact plating | Au |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | POM |
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Transmission performance | CAT6A, acc. TIA/EIA rating CAT6A, acc. IEC/ISO/EN rating |
| Power over Ethernet | PoE++ acc. IEEE 802.3bt |
| Cable O.D. | 7.0 - 9.5 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | AWG 24/1 - AWG 22/1 (solid) |
| AWG 24/7 - AWG 22/7 (stranded) | |
| Locking device | Latch lock |
| Insulation diameter | 1.1 - 1.6 mm |
